Introducing Duray Intraoral sensors – a durable, reliable, and affordable digital intraoral imaging solution. With just a 4.4mm profile and a theoretical resolution of 25 lp/mm, image quality is exceptional while ensuring easy positioning and maximum comfort for the patient. Installation is simple and straightforward with a plug-and-play design, and image processing specifications can be customized to meet your practice needs for enhanced diagnosis. Integrate Duray intraoral sensors seamlessly into your practice today and experience sharper, more detailed images with simplicity.

Thumb thin and comfortable

THIN AND COMFORTABLE

With an ultra-thin 4.4mm portfolio and ergonomically designed with rounded corners makes it easier than ever to position for bitewing images and offers maximum level of patient comfort.

Thumb high resolution imaging

HIGH RESOLUTION IMAGING

With a theoretical resolution of 25 lp/mm and through advanced CMOS technology, image quality is optimized and exceptional, and noise is reduced, producing crisp, detailed images for immediate review and diagnosis.

Thumb waterproof 1

DURABLE AND RELIABLE

Made with premium materials and rigorously tested during production processes to ensure high-quality performance standards. Duray Sensor is waterproof with an IP68 rating and can be immersed in disinfectant liquids to prevent cross infections and enhance hygiene and safety. In addition, our sensor housing is designed to be shock-resistant to protect from shock, bites, and falls to ensure durability and long product life cycle.

Thumb easy to use

EASY TO USE

Duray Sensor provides simple and easy-to-operate software with one-click smart installation and offers plug-and-play simplicity with high-speed USB 2.0 connection. Equipped with powerful image processing functions, so you can significantly and quickly improve the quality of radiographs.

DURAY DS1 DURAY DS2
Outer dimensions of the sensor (length x width x thickness) 38.5 x 25 x 4.5mm 40 x 31 x 4.5mm
Sensitive surface 30 x 20 mm (600 mm2) 36 x 26 mm (936 mm2)
Surface in pixels 1500 x1000 pixels 1800 x 1300 pixels
Weight 118g 158g
Sensor technology CMOS CMOS
Sensor resolution > 20 pl/mm > 20 pl/mm
Sensor cable length > 3 m > 3 m
Grey levels > 16 bits (16384 grey levels) 16 bits (16384 grey levels)
Connetion (Standard USB) USB 2.0 High-Speed (480Mbit/s) and USB 3.0.
Physical pixel size 20µm 20µm
Measured resolution 16 lp/mm 16 lp/mm
Theoretical resolution 25 lp/mm 25 lp/mm
Warranty 24 months 24 months

Thumb size 0 ds0001 web 01

Code: DS0001

Model: DS0, Duray Sensor Size 0 Kit

Thumb size 1 ds1001 web 01

Code: DS1001

Model: DS1, Duray Sensor Size 1 Kit

Thumb size1.5 ds1501 web 01

Code: DS1501

Model: DS1.5, Duray Sensor Size 1.5 Kit

Thumb size2 ds2001 web 01

Code: DS2001

Model: DS2, Duray Sensor Size 2 Kit

Thumb size 1 2 kit 01

Code: DS3001

Model: Duray Sensor Package (Includes size 1 & size 2 kits)

Code: DS1003

Model: Sensor Sleeve, Size 1 (100/package), 4X22cm

Code: DS1004

Model: Sensor Sleeve, Size 2 (100/package), 5X22cm

Code: DS1006

Model: Sensor Silicone Sleeve, Size 1

Code: DS1007

Model: Sensor Silicone Sleeve, Size 2

Code: DS1103

Model: Universal Starter Kit

Also Available Separately: 1 x Positioning Arm Posterior, 1 x Positioning Arm Bite Wing, 1 x Positioning Arm Anterior, 12 / pk x Bite Block Large Size, 12 / pk x Bite Block Medium Size, 1 x Posterior Aiming Ring, 1 x Anterior/Bite Wing Aiming Ring

Installing Beyes Twain and calibrating Duray sensor.

Step 1 – Installing the Twain driver. Run 'DuraySensor2024_V1.0.x.exe' to initiate the installer. Can be found within the USB drive.


Step 2 – Follow the prompt until the installation is complete.


Step 3 - Change the X-ray acquisition source to Beyes Sensor Twain. Steps may differ depending on Imaging Software.


Step 4 – Plug in the Duray Sensor and hit ACQUIRE.


Step 5 – To select the device key file. Hit ‘OK’ and locate the calibration file corresponding to the serial number the sensor.


Step 6 - All good, sensor is connected and calibrated.

Integrating with ABELDent


1. Click the Patient File to expand the icons.

2. Click on Imaging.

3. Click the drop down arrow besides the Scanner button and then choose Beyes Sensor Twain.

4. Take an x-ray shot/image using the Scanner icon.

Integrating with Eaglesoft


Top tab, click on "window" > clinical mode or the monitor with a dental chair

File > Preferences

Click on X-ray

General Defaults*

Default Device > Scanner

Check "Use scanner default interface" and "Use Auto Acquire"

Under Device Properties* > Scanner

Select "Beyes Sensor Twain"

Hit "OK" to save SETTING

SETTING UP TEMPLATES

List > Image Templates

****Ask for most commonly used Templates****

Select the templates > Edit

Set Default Source > Scanner

Uncheck the Flip This Image and Mirror This Image on each panel

Click Save As "Duray_*template_name*"

****may have to repeat these steps if they use multiple templates***

Integrating with Evasoft


Tools > configuration tool…

Under mode> check Enable TWAIN DEVICES

Under capture image> Device> Beyes Sensor Twain

Then on your Desktop right-click EVAsoft icon

Open file location > look for the folder ‘EnableTwain’>

Run the EnableTwain.exe

Restart EVAsoft

Under capture image> Device> TWAIN - Beyes Sensor Twain

Integrating with Dexis 9


NOTE: Install this only if you cannot find TWAIN Sensor under DEXray > sensor ******Make sure the software is Dexis 9 to check this click on the Dexis icon if it read Dexis 9.x.x mean its Dexis 9

1. Go to IT doc\Tools\DEXIS 9 Twain driver set up

2. Run the exe follow prompt for installation

3. Now run Dexis 9 click on the wrench

4. Go to DEXray > sensor > TWAIN Sensor

5. Scanner > Duray-sensor.

Optional (If above instruction wont work, use Scanner Icon):

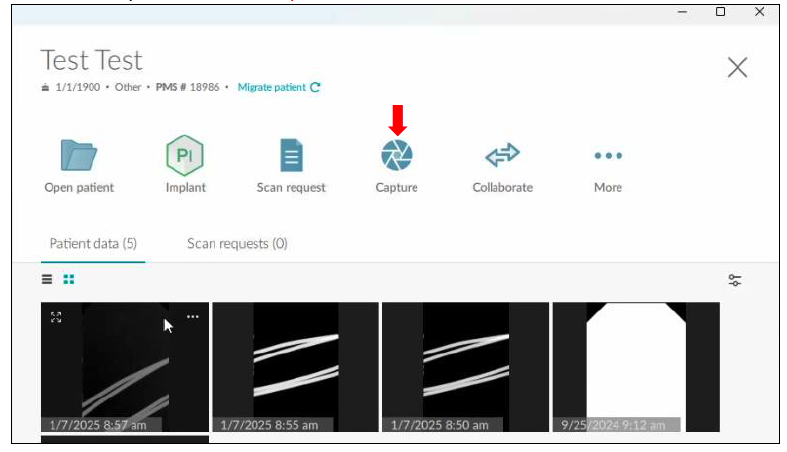

Integrating with Dexis 10


X ray acquisition sources

Look for the wrench icon on DEXIS menus

Look for x-ray acquisition; Intra-oral Devices> Twain Sensor intraoral

Now select a test patient to go into imaging phase; Press the radio active icon to take x-ray

First tab selects Twain Sensor Intraoral

Second tab select Duray sensor

Integrating with Gendex Vixwin


File > Twain Sensor Select…

Select Beyes Sensor Twain

File > Twain Scanner Acquire… to test

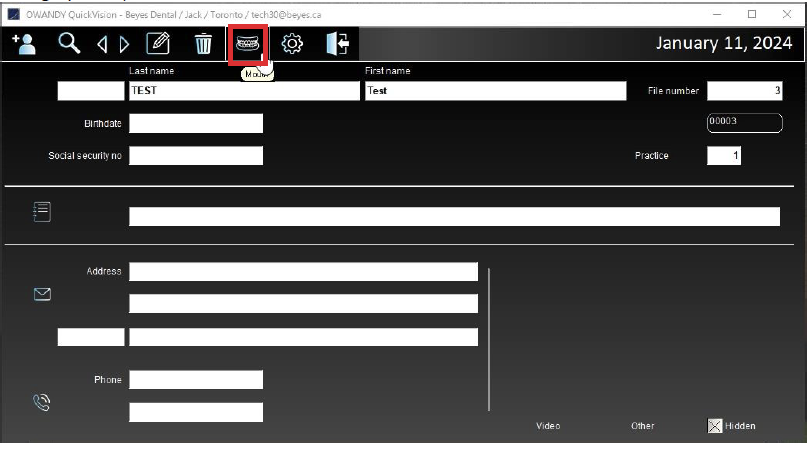

Integrating with Quickvision Owandy


Go to Patient, you can either click Search button or create a new one

After selecting a patient, click Mouth icon

RIGHT-CLICK on the Scan Icon

Select Sensor Twain for the TWAIN source

Click on Save and then Close button.

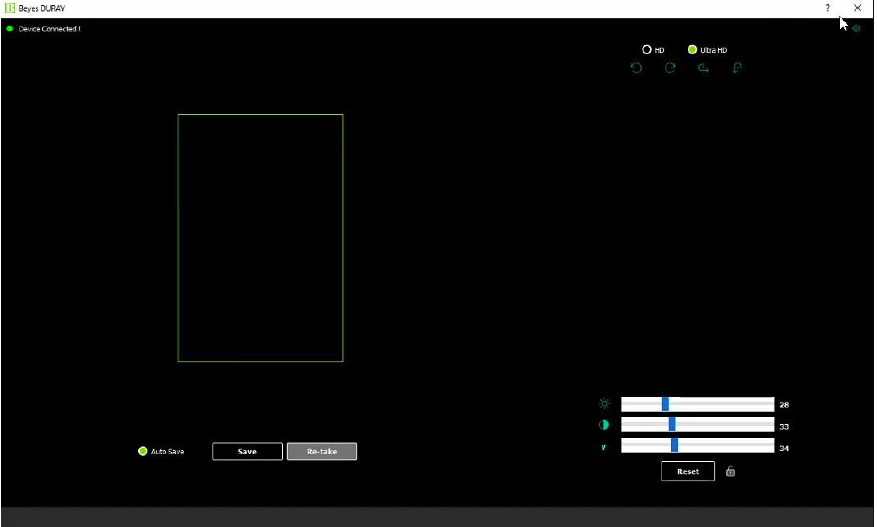

Integrating with Beyes Duray SERVER-CLIENT


Install the Duray Sensor driver, Duray_Sensor_V1.0.6_20230818.exe

Install the Duray Server-Client, Duray-Beyes Dental-V1.0.1.0-(SERVER-CLIENT setup).exe

NOTE: For the Server PC, Server and Client should be check during the installation process

Open Duray-Client found in the Desktop

NOTE: To create new user, Click on Register found at the bottom.

Or you could go to Setting > Staff Management > Click on the Staff with a Plus icon

To test on a patient, go to Patient, either you could do a search or you could create a new one.

To take an image, go to Acquisition, click on the Duray Sensor and then click on Open

From here, either you can fire up an x-ray or you could use a custom mouth mode
