Huge m800 smart

The newest AirLight V3 will exceed any previous market expectations on LED illumination. The truly innovative design of this handpiece incorporates a highly efficient micro-generator to power its LED. It will eliminate the need for a fiber optic system from your dental delivery unit. This cutting edge technology allows the operator to have a clearer illuminated operative field, reducing eye fatigue. The Direct-LED is brighter and has a larger light pattern than the traditional fiber optic system. The well-designed and precisely manufactured AirLight provides extraordinary torque to ensure the powerful cutting that you need. It will fit directly into your existing 4, 5, 6 hole handpiece tubings.

  • No Light Bulb
  • No Fiber Optic Tubing
  • No Electrical Source
  • Brilliant, Bright LED Illumination
  • Thumb ceramic

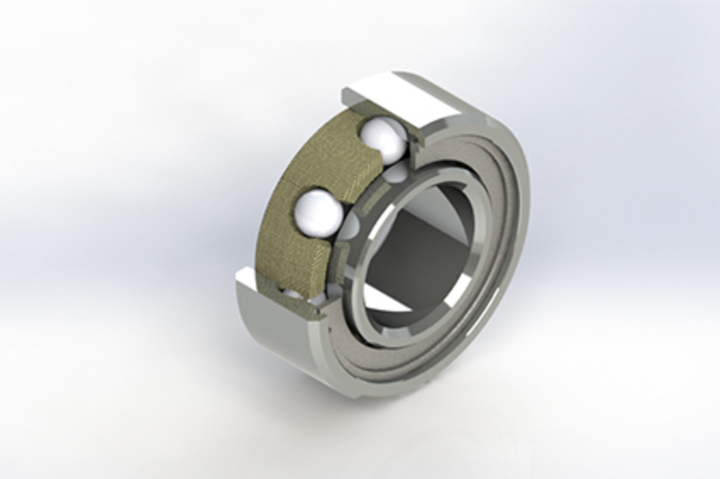

    Ceramic Ball Bearings

    Specially designed for smooth and quiet operation. It also provides superior torque and a long lifespan.

    Thumb triplr water spray

    Triple Water Spray

    Effectively cools the entire surface of the bur to avoid overheating, which provides higher patient comfort.

    Thumb direct led

    Direct-LED

    The LED is optimally positioned on the face of the handpiece to provide a larger light pattern than a traditional fiber optic system.

    Thumb micro tex

    Micro-Tex Surface

    The latest surface enhancement technology creates a micro-textured and scratch proof surface that lowers the possibility of slipping during operation.

    Thumb built in generator 2

    Generator

    An innovative micro-generator that produces electricity for the LED has been built into the handpiece. As a result, it eliminates the need for a fiber optic system.

    Thumb parts

    Compatibility

    Compatible with a great variety of coupling systems and adapts well to every existing treatment unit.

    Thumb light compairson new

    Advantage

    AirLight offers many advantages compared to the traditional fiber optic, whether it has a halogen or LED bulb. The light bulb of a traditional fiber optic is located on the tubing or the coupler. The light is then conducted by a fiber optic rod to the head of the handpiece. As a result, the intensity is reduced during the transmission and the coverage is limited. Additionally, the fiber optic rod degrades over time with autoclaving, and your light becomes more dim and yellowish. Eventually, you will have to replace the fiber optic rod. AirLight is completely different and has none of the above problems because the LED is located on the face of the handpiece to produce DIRECT illumination. The electricity is supplied by two medical grade cables from the generator. The LED is engineered in Germany with macro angle design and a high colour rendering index. As a result, you will get a higher intensity and larger coverage.

    Mini Head Standard Head
    Head Size (Width x Height) 10.8mm x 13.0 mm 12.5mm x 13.1mm
    Colour Temperature (K) 5,500 5,500
    Brightness (LUX) 25,500 25,500
    Drive Air Pressure (PSI) 40-60 40-60
    Power (WATT) 22 25
    Speed (RPM) 410,000 380,000
    Rotary Instruments FG burs according to EN ISO 1797-1
    Φ / max.length (MM) 1.6 / 25 1.6 / 25
    Water Spray Triple Triple

    Thumb hp3008 m800 m m4

    Code: HP3008

    Model: M800-M/M4

    Connection: Midwest® 4 hole

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3036 m800 m k

    Code: HP3036

    Model: M800-M/K

    Connection: Kavo® Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3051 m800 m b2

    Code: HP3051

    Model: M800-M/B2

    Connection: Borden® 2 hole

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3049 m800 s b2

    Code: HP3049

    Model: M800-S/B2

    Connection: Borden® 2 hole

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3014 m800 s qd

    Code: HP3014

    Model: M800-S/QD

    Connection: Beyes® QD Connection

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3022 m800 m w

    Code: HP3022

    Model: M800-M/W

    Connection: W&H® Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3053 m800 s st

    Code: HP3053

    Model: M800-S/ST

    Connection: Star® Connection

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3006 m800 s m4

    Code: HP3006

    Model: M800-S/M4

    Connection: Midwest® 4 hole

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3015 m800 m qd

    Code: HP3015

    Model: M800-M/QD

    Connection: Beyes® QD Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp6028 m800 s pd

    Code: HP6028

    Model: M800-S/PD

    Connection: Beyes® PD Connection

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp6018 m800 m pd

    Code: HP6018

    Model: M800-M/PD

    Connection: Beyes® PD Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3043 m800 m n

    Code: HP3043

    Model: M800-M/N

    Connection: NSK® Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3042 m800 s n

    Code: HP3042

    Model: M800-S/N

    Connection: NSK® Connection

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3021 m800 s w

    Code: HP3021

    Model: M800-S/W

    Connection: W&H® Connection

    Description: Standard Head, Direct-LED, Triple Ports

    Thumb hp3054 m800 m st

    Code: HP3054

    Model: M800-M/ST

    Connection: Star® Connection

    Description: Mini Head, Direct-LED, Triple Ports

    Thumb hp3035 m800 s k

    Code: HP3035

    Model: M800-S/K

    Connection: Kavo® Connection

    Description: Standard Head, Direct-LED, Triple Ports
