State of the art DC technology, finest focal spot of 0.4, and a wide range of preset exposure settings ensure excellent image quality and a low radiation dose for your patients. See all the details you need for precise diagnosis.

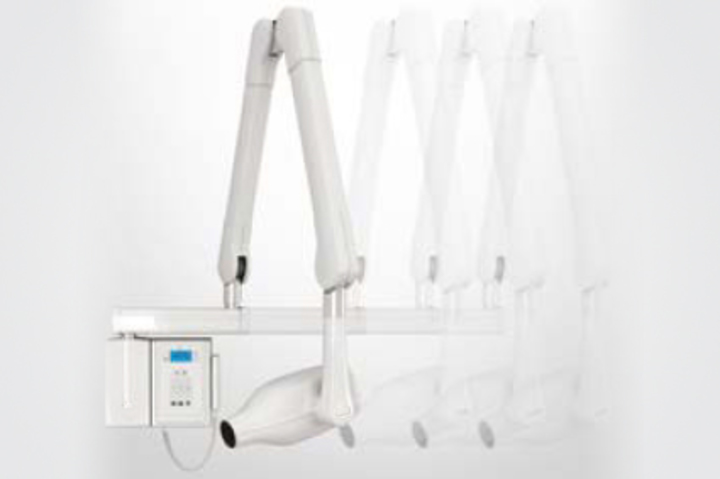

Available as a mobile or wall mounted version with four different extension arm lengths XDC easily fits into your dental practice. The wall mount and timer can be installed separately allowing even more everyday work flexibility.
The light, solid and stable arm assures smooth movement and reliable positioning. Thousands of satisfied customers already experience the ergonomy, ease of positioning and final position stability every day.

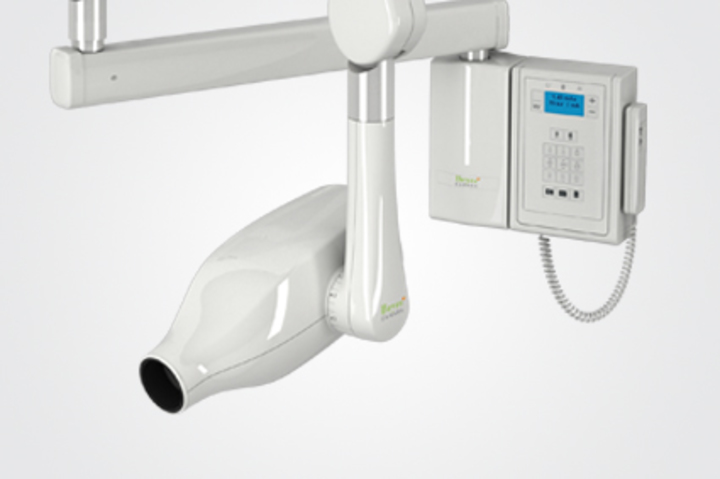

Thanks to the selectable tube voltage of 60 and 70 kV you can adjust the image contrast and gray shades needed for detailed diagnosis. Finest focal spot of 0.4, advanced DC technology and a wide range of preset exposure settings ensure excellent image quality with every exposure.

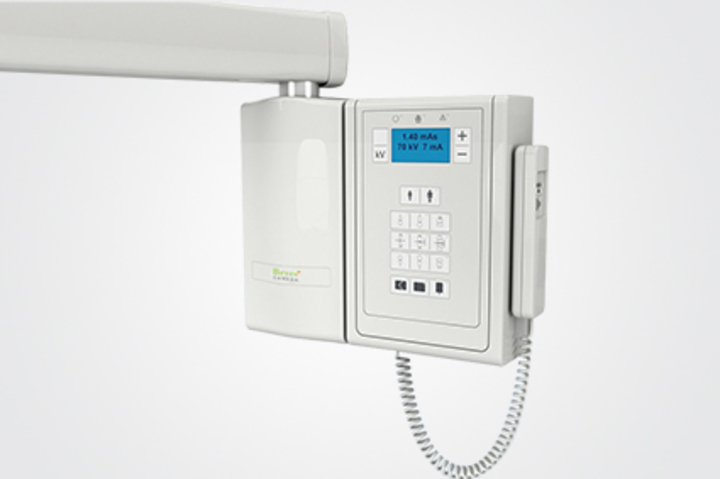

You can be sure to get the best image quality with every exposure. Set the right exposure settings quickly and intuitively in just three steps: select from 2 patient sizes, 9 preset anatomical programs and 3 detector types. Voltage can be changed from 60 to 70 kV to adjust the image contrast and grayscale.
The wall mount and timer can be installed separately allowing to control the exposure from outside the X-ray room. This solution ensures radiation safety as well as easy installation and integration into your dental practice.
Duray V2 provides appropriate exposure settings that ensure high quality images. The built-in DAP (Dose Area Product) allows dose monitoring, thus supporting safety procedures and patient radiation protection. The dose can be shown with every exposure on the XDC control panel display.
Reduce the patient dose by using the optional rectangular beam limiting device available in film size 0 and 2.
Thanks to the optional 30 cm collimator image magnification can be reduced increasing thereby the sharpness of your radiographic images.
| Generator | Direct Current (DC) |
| Focal Spot | 0.4 (IEC 336/1997) |
| Tube voltage | 60 kV / 70 kV (selectable) |
| Tube current | 7 mA |
| Line voltage | 100 / 230 V, 50/60 Hz |
| Focus – Skin Distance | Standard 20 cm (optional 30 cm) |
| Exposure time | 0.01 – 3.2 s |
| Patient Size Programs | Adult, Child |
| Number of Preset Anatomical Programs | 9 |
| Preset Detector Programs | Film, Phosphor Plate, Sensor |
| Useful reach – with SSD 20 cm | 143 cm – with short extension arm (30 cm) 173 cm – with medium extension arm (60 cm) 193 cm – with long extension arm (80 cm) 213 cm – with extra long extension arm (100 cm) |
| Useful reach – with SSD 30 cm | 133 cm – with short extension arm (30 cm) 163 cm – with medium extension arm (60 cm) 183 cm – with long extension arm (80 cm) 203 cm – with extra long extension arm (100 cm) |
Code: XR2011
Model / Description DURAY V2, DC Intraoral X-Ray, 60kV & 70kV, 100-230V, 50/60 Hz, 80cm arm length
Code: XRP1002
Model / Description DURAY V2, OPTIONAL ADD-ON: Metal plate 16” for reinforcement of the wall for wall installation (not needed for standard installation)
