Huge x99l rev4 08

Beyes Maxso Series contra-angles adopts the latest technology to increase productivity and durability to provide the highest value to end users. Best possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body.

Thumb cellular glass

Cellular Glass

Compact glass rod for outstanding illumination of the treatment site.

Thumb ceramic

Ceramic Ball Bearing

Quiet operation to reduce anxiety.

Thumb titanium

Titanium

Durable instrument construction with exceptional service life.

Thumb clean head

Clean Head System

Eliminate cross contamination.

Thumb sl3025 x99l rev1

Code: SL3012

Model: X99

Description: Non-Optic, 4 ports Spray, 1:5 Increaser, FG Bur

Thumb sl3025 x99l rev1

MSRP: $992.00 USD

Code: SL3025

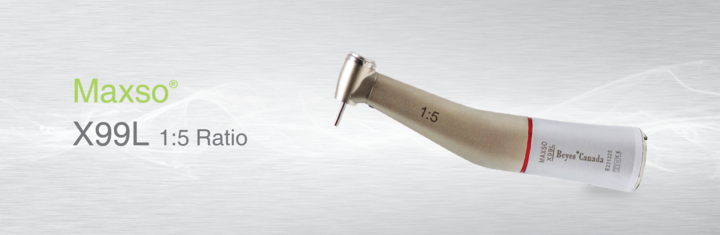

Model: X99L

Description: Fiber Optic, 4 ports Spray, 1:5 Increaser, FG Bur

Contra-angles X99 Series
Transmission ratio 1:5
Motor coupling (acc. to standard) ISO 3964
Instrument (acc. to EN ISO 1797-1:1995) (ø mm) 1.6td>
Length in mm approved by Beyes (mm) 25
Min. chuck length until back stop
Spray flow rate (acc. to ISO 7785-2) (ml/min) > 50
Water setting range (rec. water pressure) (bar) 0.5 – 2 (1.5) *
Chip air setting range (must be higher than the water pressure) (rec. chip air pressure) (bar) 1.5 – 3 (2)**
Chip air consumption at 2 bar (Nl/min) > 1.5
